R33 Washer Bottle
Custom made compact washer bottle for Skyline R33.
Bolt on fitment. Mounted closer to coolant overflow bottle and fuse box to allow as much clearance for intercooler piping or tidying up your engine bay as much as possible. Washer bottle reaches 140mm measured from the edge of radiator overflow bottle. Measured from the fuse box the bottle reaches 80mm. There is a cutout at the bottom corner to allow extra clearance near when intercooler piping may go. The single pump bottle is 10mm shorter in length but holds the same 1.5L capacity.
Custom made compact washer bottle for Skyline R33.
Bolt on fitment. Mounted closer to coolant overflow bottle and fuse box to allow as much clearance for intercooler piping or tidying up your engine bay as much as possible. Washer bottle reaches 140mm measured from the edge of radiator overflow bottle. Measured from the fuse box the bottle reaches 80mm. There is a cutout at the bottom corner to allow extra clearance near when intercooler piping may go. The single pump bottle is 10mm shorter in length but holds the same 1.5L capacity.
Custom made compact washer bottle for Skyline R33.
Bolt on fitment. Mounted closer to coolant overflow bottle and fuse box to allow as much clearance for intercooler piping or tidying up your engine bay as much as possible. Washer bottle reaches 140mm measured from the edge of radiator overflow bottle. Measured from the fuse box the bottle reaches 80mm. There is a cutout at the bottom corner to allow extra clearance near when intercooler piping may go. The single pump bottle is 10mm shorter in length but holds the same 1.5L capacity.
NOTICE:
Currently not taking any more orders for 3D printed products as I am in the process of making these products even better with higher quality materials and details. I will also be able to produce these products at a higher rate which cuts down production time. Thanks for your patience, feel free to contact us if you would like to know more.
Installation Instructions:
When installing the pumps into the washer bottle, fit the rubber grommets in first.
Then lubricate the grommets and the pump nipple and press straight and evenly with your thumbs on the top and bottom of the pump.

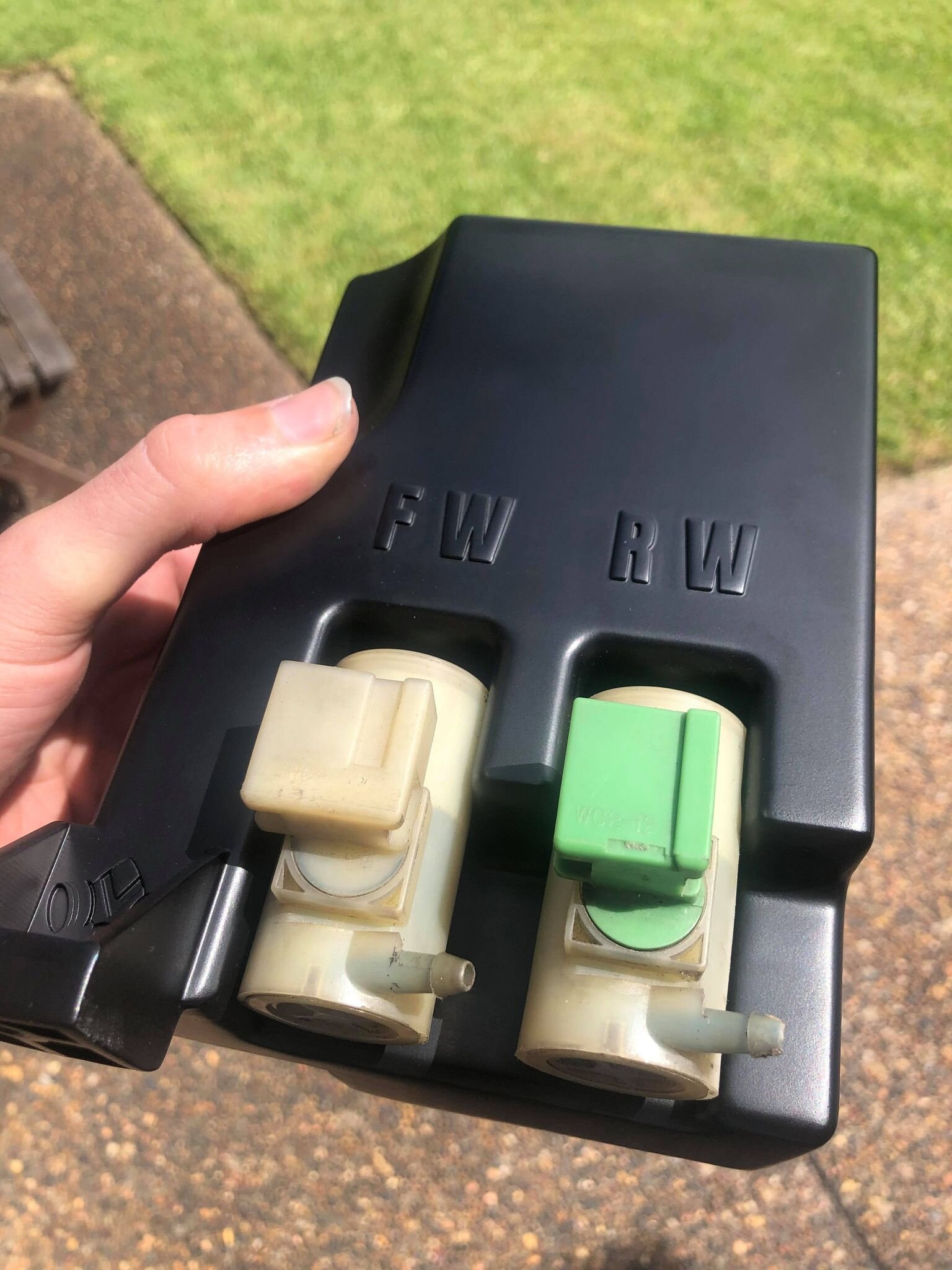

The green stock plug and pump is for the rear wiper. The white stock plug and pump is for the front wipers. These are a nice tight fit and will stay firmly in place if installed correctly.
Disclaimer:
Pushing pumps in at an angle may damage components or make it difficult to fit.
Pumps and grommets not included with the bottle. These will need to be used from a stock washer bottle or purchased separately.
Shipping:
This product is made to order, please allow 1-2 weeks for dispatch. If there is a significant delay we will be in contact with you to advise. If you purchased the custom version we will be in contact with you to fulfill your request.
If you would like to further customise these designs, please get in contact with us and we can accommodate however you need for your individual setup.
